Introduction to Power Line Marker Balls

Posted: 2024-04-30

Power line marker balls are spherical devices that are used to enhance the visibility of power lines. These brightly colored balls are installed on overhead power lines, serving as visual indicators for both aircraft pilots and ground personnel. In this article, we will explore the importance of power line marker balls, their key features, and their role in ensuring the safety of power line operations.



Importance of Power Line Marker Balls



Power line marker balls are of utmost importance in preventing accidents and ensuring the safety of both aircraft and power line personnel. Power lines, especially high-voltage transmission lines, can be difficult to spot from the air, posing a significant hazard to low-flying aircraft. The thin wires of power lines are often hard to see, particularly under adverse weather conditions or during nighttime operations. This increases the risk of collisions between aircraft and power lines, which can lead to severe accidents and power outages.



Power line marker balls are installed along power lines to increase their visibility and serve as warning indicators to aircraft pilots. These marker balls greatly reduce the risk of collisions by making power lines more noticeable to pilots, allowing them to maintain a safe distance from these hazards. By increasing the visibility of power lines, marker balls ensure the safety of both aircraft pilots and power grid operators.

Key Features of Power Line Marker Balls



Power line marker balls are designed with several features to maximize their visibility and effectiveness. Here are some key features:



Bright Colors: Marker balls are typically painted in highly visible colors, such as orange, yellow, or white. These colors contrast with the surrounding environment, making the power lines more noticeable to pilots.



Large Size: Marker balls come in various sizes, depending on the regulations and requirements of specific regions or countries. They are typically several feet in diameter, ensuring they can be easily spotted from a distance.



Lightweight and Durable: Marker balls are constructed from lightweight materials, such as plastic or fiberglass, to minimize stress on the power lines. They are designed to withstand various weather conditions and resist UV degradation, ensuring their longevity and effectiveness.



Reflective Elements: Some marker balls are equipped with reflective strips or tapes, which enhance their visibility during low-light conditions or when illuminated by aircraft lights. This further improves the visibility of power lines, reducing the risk of collisions.



Role in Ensuring Power Line Safety



The primary role of power line marker balls is to enhance the visibility of power lines and reduce the risk of aircraft collisions. By providing a clear visual indication of the presence and location of power lines, marker balls help pilots maintain a safe distance from the lines during flight. This is particularly crucial for low-flying aircraft, such as helicopters or agricultural aircraft, which operate at altitudes close to power lines.



Power line marker balls also play a vital role in preventing accidental contact between ground maintenance personnel and live power lines. The visibility provided by marker balls helps ground personnel identify the location of power lines, reducing the risk of accidental contact and potential electrocution.

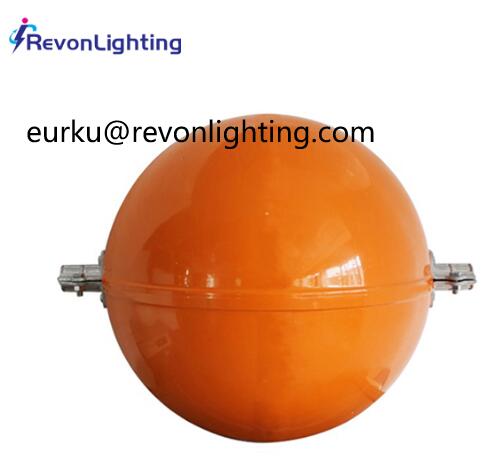

Product Name	Power Line Marker Balls Aircraft Warning Sphere
Mode NO.:	AO-WS-A1
Color:	Orange, Red, White, Orange/White, Red/White
Visible Distance:	>1200m
Voltage Range:	35KV-1000KV
Conductor diameter:	6.5-55mm
Aircraft warning sphere materials:	FRP(Fiberglass Reinforced Polyester)
Cable clamp:	Aluminum alloy
Bolts/nuts/washers:	Stainless steel 304
Diameter:	600mm(typical, other is optional)
Weight:	6.3kg
Thickness:	2.3mm
Drain holes:	Yes
Life time:	>10 years
Fastener:	Aluminum material, M10 by 35, M10 by 40
Work environment:	-50℃~+90℃, Humidity 0%-100%
Optional:	1. Preformed Armor Rods 2. Reflective Strip

In addition to their safety benefits, power line marker balls also assist in optimizing the efficiency of power line maintenance. By clearly marking the location of power lines, marker balls enable maintenance crews to quickly identify and access specific sections of the lines that require repair or inspection.



Conclusion



Power line marker balls are essential safety devices that enhance the visibility of power lines, reducing the risk of aircraft collisions and accidental contact. Their bright colors, large size, and durable construction make them highly visible and effective in various weather conditions. Power line marker balls not only protect the safety of aircraft pilots and ground personnel but also improve the efficiency of power line maintenance. Through their presence, power line marker balls promote the safe and reliable operation of power grids, ensuring the continuous supply of electricity to communities around the world.
