Helipads, specially designated areas for helicopter takeoffs and landings, are integral to the infrastructure of hospitals, corporate buildings, offshore platforms, and other facilities requiring rapid aerial transport. One of the most critical aspects of a helipad is its lighting system. Helipad lighting systems ensure the safety and efficiency of helicopter operations, particularly during nighttime or low-visibility conditions. This article explores the different components of helipad lighting systems, their roles, technological advancements, and the importance of adhering to regulatory standards.
Components of Helipad Lighting System
Helipad lighting systems consist of various lights designed to provide clear visual cues for pilots during approach, landing, takeoff, and ground operations. Each type of light serves a specific purpose, ensuring overall safety and operational efficiency.
Perimeter Lighting

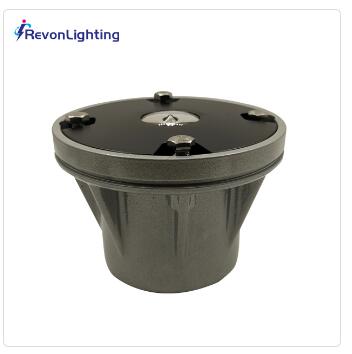

1. White Perimeter Lights: These lights outline the edges of the helipad, providing a clear visual boundary for pilots. They are typically steady-burning and placed at regular intervals around the perimeter, ensuring the landing area is easily identifiable, even in low-light conditions.
2. Green Threshold Lights: Positioned at the entrance points of the helipad, green threshold lights indicate the preferred landing direction. These lights help pilots align their approach correctly, ensuring they land safely within the designated area.
FATO and TLOF Lighting
1. FATO (Final Approach and Takeoff) Lights: FATO lights mark the edges of the final approach and takeoff area. These lights are usually white and are installed along the perimeter of the approach path, guiding the pilot during the critical phases of landing and takeoff.
2. TLOF (Touchdown and Lift-Off Area) Lights: TLOF lights, typically green, mark the exact spot where the helicopter's wheels or skids should touch down. These lights provide a precise target for the pilot during landing, ensuring accurate touchdowns.
Floodlights and Spotlights
1. Floodlights: Floodlights illuminate the entire helipad surface, ensuring that pilots can clearly see the landing area and any potential obstacles. These lights are especially important in areas where ambient lighting is insufficient.
2. Spotlights: Spotlights focus intense beams of light on specific areas of the helipad, such as the TLOF zone or approach path. They provide additional visibility and can be used to highlight critical areas during landing and takeoff.
Obstruction Lighting
Obstruction lights are installed on structures around the helipad, such as buildings, towers, or cranes, to warn pilots of potential hazards. These lights are typically red and flash at regular intervals to draw attention to obstacles that could pose a risk during approach or departure.
Windsocks, which indicate wind direction and speed, are often illuminated to ensure they are visible during nighttime operations. Properly lit windsocks provide pilots with essential information about wind conditions, helping them make informed decisions during landing and takeoff.
Importance of Helipad Lighting Systems
The primary purpose of helipad lighting systems is to enhance safety and operational efficiency. Here are several key reasons why these systems are crucial:
Enhanced Pilot Visibility
Proper helipad lighting ensures that pilots can clearly see the landing area, boundaries, and any obstacles, even in adverse weather conditions or at night. Enhanced visibility reduces the risk of accidents caused by poor lighting, such as landing outside the designated area or colliding with obstacles.
Accurate Navigation
Helipad lights provide critical visual cues that help pilots navigate their approach and departure paths accurately. Green threshold lights, FATO, and TLOF lights guide pilots to align their helicopters correctly, ensuring safe and precise landings. This is particularly important in confined or complex environments where precision is essential.
| helipad lighting system | 12 |
| 14 | 34 |
| 12 | 45 |
Increased Operational Efficiency
Well-lit helipads allow for continuous operations regardless of the time of day. This is especially important for emergency medical services (EMS), search and rescue missions, and offshore operations where helicopters often need to operate during nighttime or low-visibility conditions. Efficient lighting systems enable these critical services to function without interruption, saving lives and resources.
Safety Compliance
Aviation authorities, such as the Federal Aviation Administration (FAA) and the International Civil Aviation Organization (ICAO), have established stringent regulations and standards for helipad lighting. Compliance with these standards is mandatory for ensuring the safety of helicopter operations. Properly installed and maintained helipad lighting systems help operators meet these regulatory requirements, avoiding penalties and enhancing overall safety.
Emergency Situations
In emergency situations, such as medical evacuations or natural disasters, the ability to land safely in challenging conditions is paramount. Helipad lights provide the necessary guidance to pilots, ensuring they can land quickly and safely to deliver aid or evacuate individuals in need. The reliability of helipad lighting systems can make a significant difference in the success of emergency operations.
Advances in Helipad Lighting Technology
The evolution of lighting technology has led to significant improvements in helipad lighting systems. Modern advancements offer enhanced performance, durability, and efficiency.
LED Lighting
Light-emitting diode (LED) technology has become the standard for helipad lighting due to its numerous benefits. LED lights are highly energy-efficient, consuming less power than traditional incandescent or halogen lights. They also have a longer lifespan, reducing maintenance costs and downtime. Additionally, LED lights provide brighter and more consistent illumination, which is crucial for ensuring visibility in all conditions.
Solar-Powered Lights
Solar-powered helipad lights offer a sustainable and cost-effective solution, particularly in remote or off-grid locations. These lights are equipped with solar panels that charge during the day and provide illumination at night. Solar-powered systems reduce the reliance on external power sources and can operate independently, making them ideal for temporary or emergency helipads.
Remote Control and Automation
Modern helipad lighting systems can be equipped with remote control and automation features, allowing operators to adjust lighting settings based on specific needs. Remote control systems enable the activation or deactivation of lights from a distance, while automated systems can adjust the brightness or flashing patterns based on ambient light conditions or pre-set schedules. These features enhance the flexibility and responsiveness of helipad lighting systems.
Conclusion
Helipad lighting systems are a critical component of aviation infrastructure, ensuring the safety and efficiency of helicopter operations. By providing clear visual guidance, enhancing visibility, and helping pilots navigate accurately, these systems play a vital role in preventing accidents and enabling continuous operations. Advances in lighting technology, such as LED and solar-powered lights, have further improved the performance and sustainability of helipad lighting systems. As the demand for helicopter services continues to grow, the importance of reliable and effective helipad lighting will remain paramount in ensuring safe landings and takeoffs. Adhering to regulatory standards and embracing technological advancements will be key in maintaining and enhancing the safety and efficiency of helipad operations worldwide.
