In the world of aviation, safety is paramount, and one of the simplest yet most crucial tools for ensuring safety is the obstruction lamp. These lamps are used to mark tall structures, such as buildings, communication towers, wind turbines, and cranes, alerting pilots to potential hazards in their flight paths. Whether in urban landscapes or remote areas, the obstruction lamp plays a vital role in preventing accidents and improving visibility, particularly in low-light and adverse weather conditions. This article explores the significance of obstruction lamps, their types, functions, and regulatory standards that guide their use.
What is an Obstruction Lamp?
An obstruction lamp is a light fixture designed specifically to mark obstacles that are tall enough to present a hazard to low-flying aircraft. These lamps are installed on or near the top of structures that exceed a certain height, typically around 45 meters (150 feet) or more. The primary purpose of an obstruction lamp is to make these structures visible to aircraft, especially during nighttime, fog, heavy rain, or other conditions with low visibility.
The lamp’s flashing or steady light provides a clear visual signal to pilots, ensuring that tall structures can be seen from a distance, even in poor lighting conditions. By marking these structures, obstruction lamps help prevent collisions between aircraft and tall obstacles, significantly improving aviation safety.
Types of Obstruction Lamps
Low-Intensity Obstruction Lamps
Low-intensity obstruction lamps are used for marking shorter structures, usually those that are between 45 and 150 feet tall. These lamps emit a red light that is bright enough to be visible to aircraft in the area, yet not so intense that it causes unnecessary light pollution in residential or urban environments. The red light is particularly effective at night, as it contrasts sharply with the darkness of the sky.
Low-intensity lamps are commonly found on smaller buildings, utility poles, and low communication towers. Their primary role is to make sure these structures are visible to aircraft flying at lower altitudes, which is especially important near airports, helipads, or in areas with frequent low-flying traffic.
Medium-Intensity Obstruction Lamps
For taller structures, such as larger towers or medium-sized buildings, medium-intensity obstruction lamps are used. These lamps are more powerful than low-intensity lights and often feature both red and white light. The white light is typically used during the day to ensure the structure is visible in daylight, while the red light is used at night for visibility in the dark.

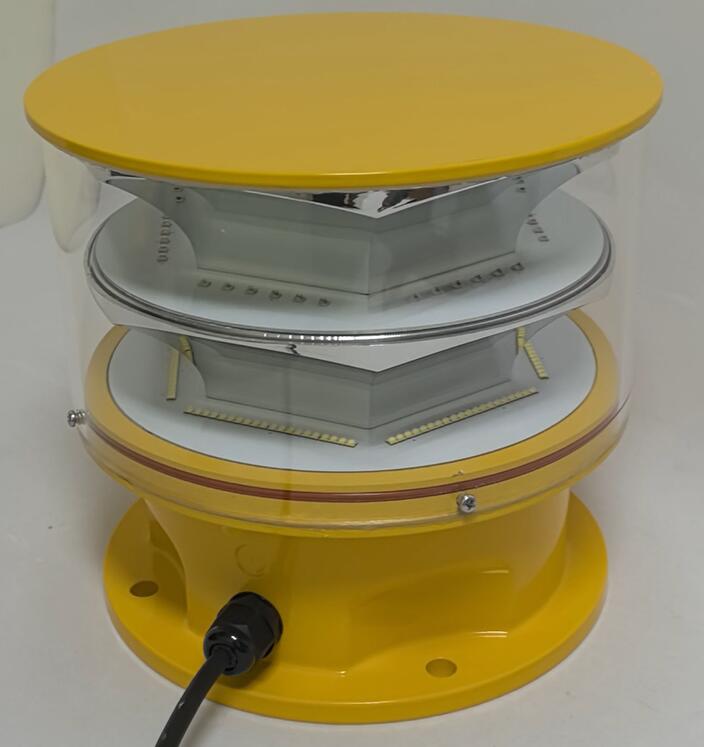

| obstruction lamp | SDFT6 |
The medium-intensity lamps are often installed at various levels of the structure, including the top, mid-level, and sometimes along the sides, to ensure maximum visibility. This type of lamp is commonly used on residential high-rise buildings, industrial sites, and wind turbines.
High-Intensity Obstruction Lamps
High-intensity obstruction lamps are typically used for marking very tall structures, such as skyscrapers, communication towers, and large industrial chimneys. These structures can rise several hundred feet into the air and require very bright lighting to ensure they are visible from a significant distance.
High-intensity lamps are usually white and are designed to flash at high intervals during both the day and night. These flashing lamps serve to draw attention to the structure from all directions, making them highly effective at preventing aircraft from inadvertently colliding with these large obstacles. The flashing pattern is often synchronized to improve visibility and ensure they stand out even in areas with heavy air traffic.
Infrared Obstruction Lamps
Infrared (IR) obstruction lamps are a specialized version of the traditional obstruction lamps. These lights are invisible to the human eye but can be detected by aircraft using infrared sensors. This technology is often used in sensitive areas where minimizing visibility to the general public or unauthorized individuals is essential, such as military facilities, research centers, or critical infrastructure sites.
IR lamps provide the same level of safety and visibility to pilots using infrared detection systems without creating unnecessary light pollution for the surrounding community. These lamps are often part of a larger, more complex aviation safety system.
Function of Obstruction Lamps
The primary function of obstruction lamps is to make tall structures visible to aircraft, particularly during low-light conditions or bad weather. By doing so, these lamps help to:
Prevent Aircraft Collisions
The most important role of an obstruction lamp is preventing collisions between aircraft and tall structures. When installed properly, these lamps provide a clear signal to pilots that a potential obstacle is in their path. This allows pilots to make necessary adjustments to their flight paths and avoid accidents. With the increasing number of structures in urban environments, especially around airports, the role of obstruction lamps in preventing crashes has become even more critical.
Ensure Visibility in Adverse Conditions
Obstruction lamps are designed to enhance visibility in a wide range of conditions, from clear skies to fog, rain, or even snow. In these low-visibility conditions, it can be difficult for pilots to see tall structures from a distance. The flashing lights of obstruction lamps provide a beacon, guiding aircraft around obstacles and helping pilots navigate safely.
Marking Hazardous Structures
Many structures, such as radio towers, cranes, and wind turbines, are essential for communication, energy production, and other industrial functions. However, these structures, if not properly marked, pose a significant hazard to aviation. Obstruction lamps are used to identify these structures and ensure that pilots are aware of their presence when flying at low altitudes.
Regulatory Standards for Obstruction Lamps
The installation and operation of obstruction lamps are governed by regulations set by various aviation authorities, including the Federal Aviation Administration (FAA) in the United States and the International Civil Aviation Organization (ICAO) internationally. These regulations ensure that obstruction lamps meet certain criteria for effectiveness and safety.
Federal Aviation Administration (FAA)
In the United States, the FAA has strict guidelines regarding the installation of obstruction lamps. The FAA Advisory Circular 70/7460-1L outlines the criteria for marking structures that exceed certain heights with appropriate obstruction lighting. The regulations specify the intensity of the lights, the flashing pattern, and the required maintenance and inspection intervals for the lamps.
International Civil Aviation Organization (ICAO)
ICAO provides global standards for marking obstacles, including the use of obstruction lamps. According to ICAO Annex 14, structures taller than 45 meters must be marked with appropriate lighting. ICAO also sets guidelines for the color, intensity, and flashing intervals of the lights to ensure consistency and safety across different countries and regions.
National Regulations
Many countries have their own regulations based on ICAO standards but tailored to local conditions and requirements. These regulations help maintain a consistent approach to the marking of obstacles worldwide, ensuring that pilots can rely on uniform signals, no matter where they are flying.
Benefits of Obstruction Lamps
Enhanced Aviation Safety
The most obvious benefit of obstruction lamps is their ability to enhance aviation safety. By marking tall structures, these lamps significantly reduce the risk of mid-air collisions, particularly in busy airspaces or areas with dense fog, low clouds, or poor weather conditions.
Reduced Risk of Accidents
Accidents caused by low-flying aircraft colliding with unmarked structures can result in significant loss of life and property. The use of obstruction lamps drastically reduces the likelihood of such accidents, ensuring that aircraft can safely navigate around tall structures.
Compliance with Safety Standards
Obstruction lamps help building owners and developers comply with national and international aviation safety standards. By installing these lamps, they ensure that their structures are adequately marked and that they are not a hazard to air traffic.
Obstruction lamps are an indispensable part of modern aviation safety. They help ensure that tall structures are visible to aircraft, preventing collisions and improving visibility, particularly in adverse conditions. Whether low-intensity, medium-intensity, high-intensity, or infrared, obstruction lamps are critical for marking buildings, towers, and other structures that could pose a danger to low-flying aircraft. By adhering to regulatory standards, these lamps provide a simple but highly effective means of ensuring aviation safety and protecting both pilots and passengers.
