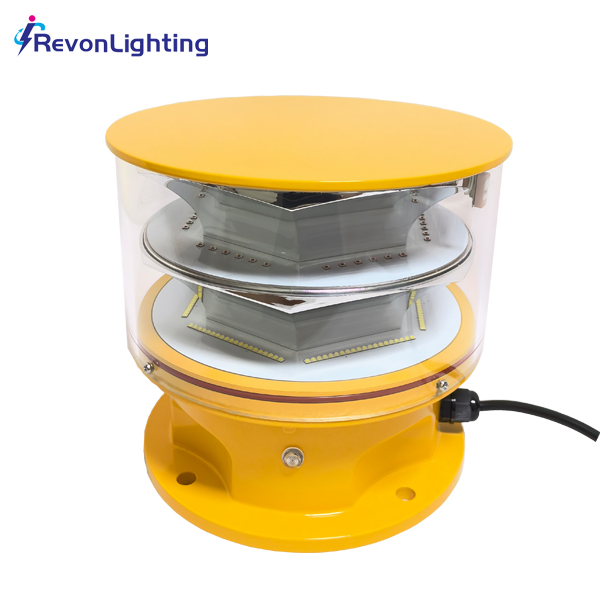

Aviation Obstruction Light Type AB Type AC Medium Intensity Aircraft Warning Light AO-MI-AB2
Aviation Obstruction Light Type AB Type AC Medium Intensity Aircraft Warning Lights are essential components of aviation safety systems, designed to enhance visibility and reduce the risk of collisions with tall structures such as towers, cranes, and buildings. These lights are highly visible and comply with international aviation standards, making them suitable for a wide range of applications. The Type AB and Type AC medium intensity aircraft warning lights are designed to be effective during both day and night, and they are equipped with advanced features to ensure reliable performance in various environmental conditions. By providing a clear warning to aircraft, these lights play a crucial role in increasing safety and preventing potential hazards near tall structures in airspace.
Overview:
Aviation Obstruction Light Type AB Type AC Medium Intensity Aircraft Warning Light AO-MI-AB2, it flashes white color daytime and red color night time. According to ICAO, FAA regulations, this obstruction lights aviation is designed for marking top of obstacle wich height is 45-105-150m. and this aircraft obstruction light needs to keep working in 24 hrs. We adopt high intensity CREE LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-864, FAA L-865.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole FAA Obstruction Lighting ICAO Type A C A B Obstruction Light Aircraft Warning Lights temperature won’t be high.
7. Built-in photocell for daytime and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
Aviation Obstruction Light Type AB Type AC Medium Intensity Aircraft Warning Light |
|
Mode NO.: |
Type AB: AO-MI-AB2 Type AC: AO-MI-AC2 |
|
Color: |
White in daytime, and red in night. |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
20,000cd±25% (Daytime), 2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
Type AB: 20-60FPM；Type AC: daytime flashing, night steady burning
|
|
Operation Mode: |
24 hours |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<25W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
4.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |
Dimension & Installation:
Applications:

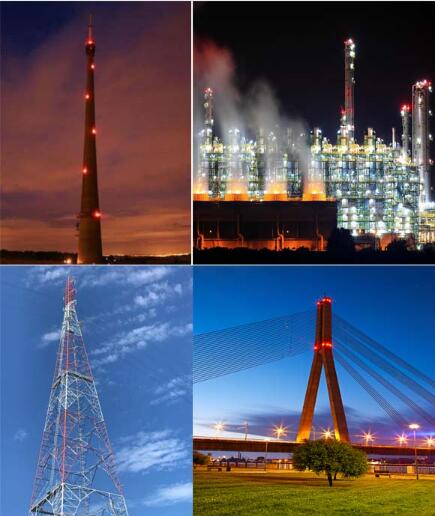

Aviation Obstruction Light Type AB Type AC Medium Intensity Aircraft Warning Light AO-MI-AB2 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is 45-105-150m, and it needs medium intensity aviation obstruction lights aviation in the top, and low intensity aircraft obstruction light, installed on the lower place.
