Aviation Obstruction Lamp Type A Medium Intensity Obstruction Light AO-MI-A2

The aviation obstruction lamp type A medium intensity obstruction light is an essential component of aviation safety systems, designed to enhance visibility and reduce the risk of collisions with tall structures such as towers, cranes, and buildings. These lights are highly visible and comply with international aviation standards, making them suitable for a wide range of applications. The Type A medium intensity obstruction light is designed to be effective during both day and night, and it is equipped with advanced features to ensure reliable performance in various environmental conditions. By providing a clear warning to aircraft, these lights play a crucial role in increasing safety and preventing potential hazards near tall structures in airspace.

Overview:

Aviation Obstruction Lamp Type A Medium Intensity Obstruction Light AO-MI-A2, it flashes white color day and night time. According to ICAO, FAA regulations, this medium intensity aviation obstruction light is designed for marking top of obstacle where an object is indicated by medium-intensity obstacle lights, Type A, and the top of the object is more than 105m above the level of the surrounding ground or the elevation of tops of nearby buildings less than 150m. and this obstacle light needs to keep flahsing in night time at 20-60fpm 24 hrs. We adopt high intensity CREE LEDs as light source, stable quality and long life time Aviation obstruction lamp.

Compliance:

1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018

2. FAA L-865.

Features:

1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Unique design and UV protected polycarbonate for the obstruction light protect cover.

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole FAA lights type A medium intensity obstacle light aircraft warning lights ICAO aviation light for towers temperature won’t be high.

7. Built-in photocell for daytime and night operation.

8. Surge and lightning protection.

9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.

Specification:

Product Name	Aviation Obstruction Lamp Type A Medium Intensity Obstruction Light AO-MI-A2
Mode NO.:	AO-MI-A2
Color:	White
Light source:	CREE LED
Light Intensity(cd):	20,000cd±25% (Daytime), 2,000cd±25% (Night)
Horizontal Output(degrees):	360 degree
Vertical Divergence(degrees):	3-7 degree
Flashing Characteristics:	Type A: 20-60FPM,
Operation Mode:	24 hours
Input:	100-240VAC 50-60Hz, 12-48VDC(Details contact us)
Power Consumption(W):	Aviation obstacle lights average Power consumption<15W
Circuit Protection:	Integrated
Obstruction Light Material:	PC cover, ABS reflector and Powder coated die-casting aluminum base.
Weight(kg):	2.8kg
IP Grade:	IP66
Work environment:	-50℃~+60℃, Humidity 0%-100%
Optional functions(Separate charges):	1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc.

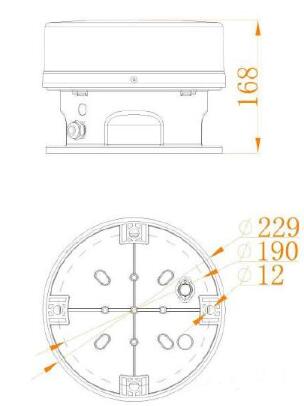

Dimension & Installation:

aviation obstruction lamp

Applications:

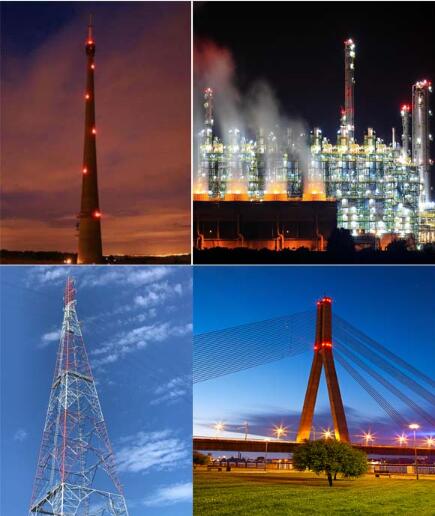

Aviation Obstruction Lamp Type A Medium Intensity Obstruction Light AO-MI-A2 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is 45-105m, and it needs medium intensity aviation obstruction light in the top, and low intensity obstacle lights installed on the lower place.
