High Intensity Obstacle Light Aviation Lamp For Chimney AO-HI-A4
The high-intensity obstacle light aviation lamp for chimneys is a specialized lighting system designed to ensure the safety of aircraft in the vicinity of tall structures like chimneys. These lights are specifically designed to be highly visible to pilots, even during low-visibility conditions. The high-intensity lights emit a strong, focused beam that serves as a clear warning signal for aircraft approaching or flying near chimneys. These lights are typically installed on the top or sides of the chimney structure, providing maximum visibility from all angles. The aviation lamp for chimneys is built to withstand harsh environmental conditions and is designed for long-lasting performance. By effectively marking chimneys, these lights help to prevent potential collisions and ensure the safe navigation of aircraft in the vicinity of tall structures.
Overview:
High Intensity Obstacle Light Aviation Lamp For Chimney AO-HI-A4 is used to mark buildings that may cause damage to aircraft. This mode high-intensity aviation obstruction lights illuminate white light 24 hours day and time, Combines with advanced LED, optical and system control technology to meet the most demanding applications. Suitable for obstacles with a height of 150 meters. Suitable for high salinity corrosion area.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Light source using LED technology, LED PCB two-layer design, better heat dissipation,lower energy consumption, high efficiency.
2. High-precision beam optical reflector, two-layer design, can effectively control the beam within the required range, and greatly reduce power consumption.
3. Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.
4. Waterproof silicone seal structure.
5. Professional EMC design, anti-electromagnetic interference.
6. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
High Intensity Obstacle Light Aviation Lamp For Chimney AO-HI-A4 |
|
Mode NO.: |
AO-HI-A4 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
90 degree |
|
Vertical Divergence(degrees): |
5 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
Glass and die-casting aluminum casing. |
|
Weight(kg): |
9kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

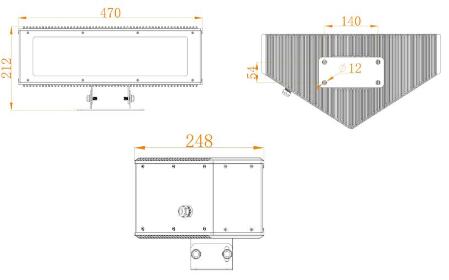

Dimension & Installation:
Applications:

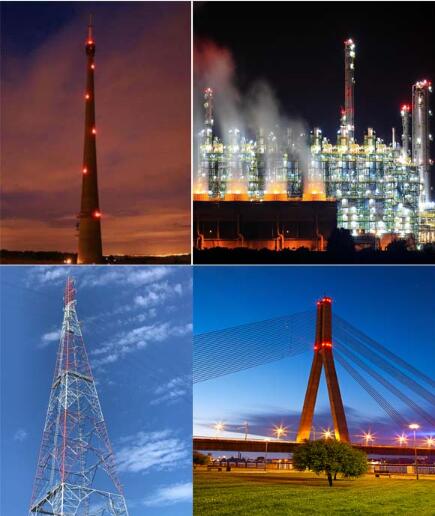

High Intensity Obstacle Light Aviation Lamp For Chimney AO-HI-A4 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.
