Obstruction Lamp High Intensity Tower Lights Aviation 360deg AO-HI-A2

Obstruction lamp high intensity tower light aviation, also known as high-intensity tower light, is an essential part of aviation lighting systems. These lights are specifically designed to mark tall structures such as communication towers, skyscrapers, and other obstacles. Their primary function is to enhance visibility and reduce the risk of aircraft collisions.

Obstruction lamps emit intense, highly visible beams that can be seen from long distances, even in adverse weather conditions. They are typically installed at the top of the structure and are built to withstand harsh environmental conditions.

The high intensity of these lights ensures that they are visible to pilots, providing a clear warning of the presence of the obstruction. The distinctive flashing patterns of these lights serve as an important visual cue for aircraft navigating in the vicinity.

Overall, obstruction lamps play a crucial role in aviation safety by providing high visibility and clear warning signals to pilots, helping to prevent potential collisions with tall structures and ensuring the safe navigation of aircraft.

Overview:

Obstruction lamp high intensity tower lights aviation 360deg AO-HI-A2 illuminate white light 24 hours day and time. According to ICAO, FAA regulations, lighting of objects with a height 150 m or more above ground level, and this high intensity obstruction light needs to keep flahsing 24 hours at 40-60fpm. We adopt high intensity CREE LEDs as light source, stable quality and long life time.

Compliance:

1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018

2. FAA L-856.

Features:

1. Light source using LED technology, LED PCB two-layer design, better heat dissipation,lower energy consumption, high efficiency.

2. High-precision beam optical reflector, two-layer design, can effectively control the beam within the required range, and greatly reduce power consumption.

3. Unique design and UV protected polycarbonate for the obstruction light protect cover.

4. Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.

5. Waterproof silicone seal structure.

6. Professional EMC design, anti-electromagnetic interference.

7. Built-in photocell for daytime, twilight and night operation.

8. Surge and lightning protection.

9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.

Specification:

Product Name	Obstruction lamp high intensity tower lights aviation 360deg AO-HI-A2
Mode NO.:	AO-HI-A2
Color:	White
Light source:	CREE LED
Light Intensity(cd):	200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night)
Horizontal Output(degrees):	360 degree
Vertical Divergence(degrees):	5 degree
Flashing Characteristics:	40-60FPM
Operation Mode:	24 hours operation, 3 different modes
Input:	100-240VAC 50-60Hz, 12-48VDC(Details contact us)
Power Consumption(W):	Average Power consumption<80W
Circuit Protection:	Integrated
Obstruction Light Material:	PC cover, ABS reflector and Powder coated die-casting aluminum base.
Weight(kg):	15kg
IP Grade:	IP66
Work environment:	-50℃~+60℃, Humidity 0%-100%
Optional functions(Separate charges):	1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc.

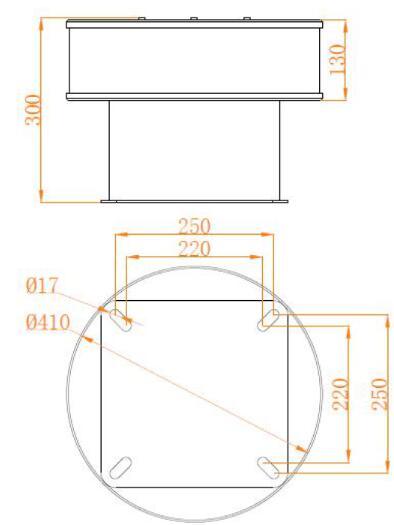

Dimension & Installation:

tower lights aviation

Applications:

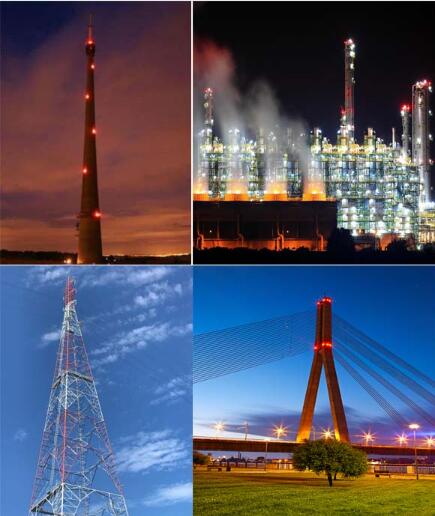

Obstruction lamp high intensity tower lights aviation 360deg AO-HI-A2 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.

Obstruction lamp
