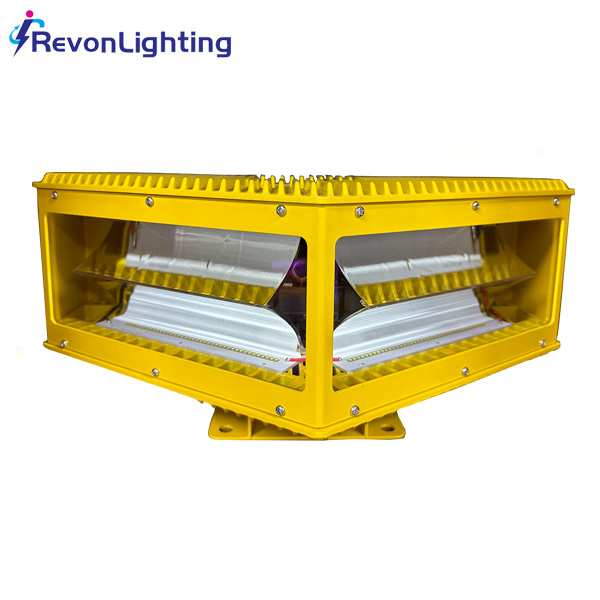

Aviation Light high Intensity Obstruction Light 120deg AO-HI-A5
Aviation Light high Intensity Obstruction Light 120deg AO-HI-A5 is essential components of aviation safety systems, designed to enhance visibility and reduce the risk of collisions with tall structures such as towers, cranes, and buildings. These lights are highly visible, especially during low-visibility conditions, and they play a critical role in preventing potential collisions with these structures. High intensity obstruction lights are typically used in conjunction with other aviation lighting systems to provide a clear warning to aircraft and ensure safe navigation through airspace. They are designed to be durable and reliable, capable of withstanding various environmental conditions. By providing a clear warning signal to pilots, these lights significantly contribute to the overall safety of aviation operations.
Overview:
Aviation Light high Intensity Obstruction Light 120deg AO-HI-A5 adopts special corner design 120° , this mode lights are used to mark buildings that may cause damage to aircraft. our mode high-intensity obstruction lights illuminate white light 24 hours day and time, Combines with advanced LED, optical and system control technology to meet the most demanding applications. Suitable for obstacles with a height of 150 meters. Suitable for high salinity corrosion area.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Light source using LED technology, LED PCB two-layer design, better heat dissipation,lower energy consumption, high efficiency.
2. High-precision beam optical reflector, two-layer design, can effectively control the beam within the required range, and greatly reduce power consumption.
3. Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.
4. Waterproof silicone seal structure.
5. Professional EMC design, anti-electromagnetic interference.
6. Special corner design 120° in horizontal angle, 3pcs AO-HI-A5 make up 360°, Less quantity and lower cost.
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
Aviation Light high Intensity Obstruction Light 120deg AO-HI-A5 |
|
Mode NO.: |
AO-HI-A5 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
Special corner design 120° in horizontal angle |
|
Vertical Divergence(degrees): |
5 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
Glass and die-casting aluminum casing. |
|
Weight(kg): |
9kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

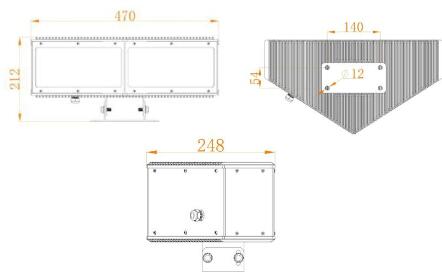

Dimension & Installation:

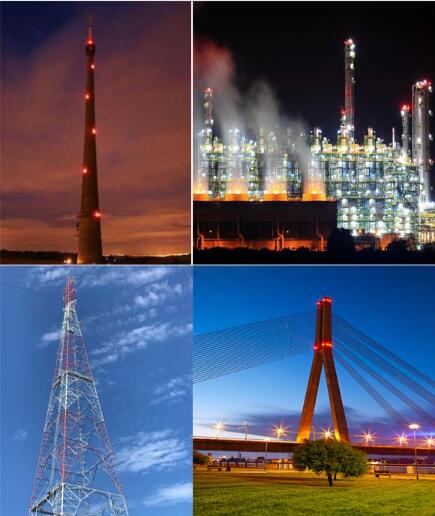

Applications:
Aviation Light high Intensity Obstruction Light 120deg AO-HI-A5 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.
