L 864 Obstruction Light medium Intensity Aircraft Warning Light Type B type C

L 864 obstruction light medium intensity aircraft warning light Type B type C

The L 864 obstruction light, also known as medium intensity aircraft warning light, is an essential lighting system designed to enhance aviation safety by marking tall structures such as towers, cranes, and buildings to prevent potential collisions with aircraft. This type of light provides high visibility, reliable performance, and compliance with international aviation standards, making it an ideal choice for a wide range of applications. The L 864 obstruction light is designed to be highly visible during both day and night, and it is equipped with advanced features to ensure reliable performance in various environmental conditions. This lighting system is crucial for increasing safety and reducing the risk of collisions for aircraft navigating through airspace near tall structures.

Overview:

L 864 Obstruction Light medium Intensity Aircraft Warning Light Type B type C, it flash red color night time. According to ICAO, FAA regulations, this medium intensity aviation obstruction light is designed for marking top of obstacle which height is between 45 to 105 meters. and this l864 obstruction light needs to keep flahsing in night time at 20-60fpm. We adopt high intensity CREE LEDs as light source, stable quality and long life time.

Compliance:

1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018

2. FAA L-864.

Features:

1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Unique design and UV protected polycarbonate for the obstruction light protect cover.

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole Type B medium intensity aviation obstruction lighting temperature won’t be high.

7. Built-in photocell for daytime and night operation.

8. Surge and lightning protection.

9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.

Specification:

Product Name	L 864 Obstruction Light medium Intensity Aircraft Warning Light Type B type C
Mode NO.:	Type B: AO-MI-B2; Type C: AO-MI-C2
Color:	Red
Light source:	CREE LED
Light Intensity(cd):	Type B: 2,000cd±25% (Night) Type C: 2,000cd±25% (Night)
Horizontal Output(degrees):	360 degree
Vertical Divergence(degrees):	3-7 degree
Flashing Characteristics:	Type B: 20-60FPM, Type C: Fixed Lighting.
Operation Mode:	Night working, daytime off
Input:	100-240VAC 50-60Hz, 12-48VDC(Details contact us)
Power Consumption(W):	Average Power consumption<15W
Circuit Protection:	Integrated
Obstruction Light Material:	PC cover, ABS reflector and Powder coated die-casting aluminum base.
Weight(kg):	2.5kg
IP Grade:	IP66
Work environment:	-50℃~+60℃, Humidity 0%-100%
Optional functions(Separate charges):	1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc.

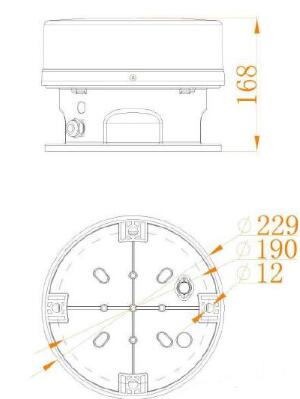

Dimension & Installation:

obstruction light

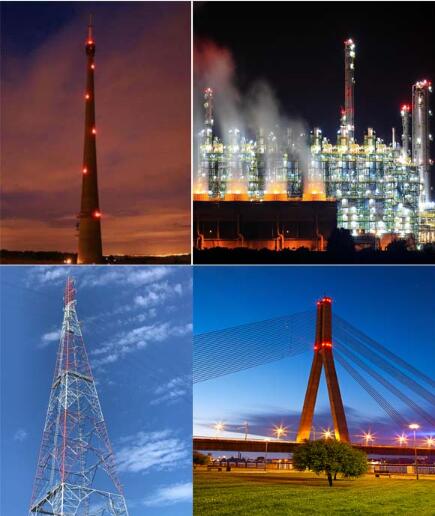

Applications:

L 864 Obstruction Light medium Intensity Aircraft Warning Light Type B type C is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is 45-105m, and it needs medium intensity aviation obstruction light in the top, and low intensity obstacle lights installed on the lower place.
