Double Obstruction Light L 810 Light AO-LI-D1
The double obstruction light L 810 is an essential lighting system used to enhance aviation safety by marking tall structures such as towers, chimneys, cranes, and buildings to prevent potential collisions with aircraft. This type of light provides high visibility, reliable performance, and compliance with international aviation standards, making it an ideal choice for a wide range of applications. The double obstruction light L 810 is designed to be highly visible during both day and night, and it is equipped with advanced features to ensure reliable performance in various environmental conditions. This lighting system is an essential tool for increasing safety and reducing the risk of collisions for aircraft navigating through airspace near tall structures.
Overview:
Double Obstruction Light L 810 Light AO-LI-D1, it has different colors and different light characteristics, such as Fixed light, flashing light. This dual low intenity lights is main-standby mode design. when one light not work, the other will start to work automatically. According to ICAO regulations, this low intensity obstruction light is designed for marking top of obstacle which height is not more than 45m. and this l810 red obstruction light needs to keep working in night time. We adopt high intensity CREE LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. No screw fix type - just twist, the cover will be fixed tightly.
7. Built-in photocell for daytime and night operation.
8. Surge and lightning protection.
9. 3/4 inch Pipe thread installation.
Specification:
|
Product Name |
Double Obstruction Light L 810 Light AO-LI-D1 |
|
Mode NO.: |
AO-LI-D1 |
|
Color: |
Red/yellow/blue/white etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>32.5cd |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
Fixed light/20/30/60fpm adjustable
|
|
Operation Mode: |
Main and standby mode, Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<6W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
1.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

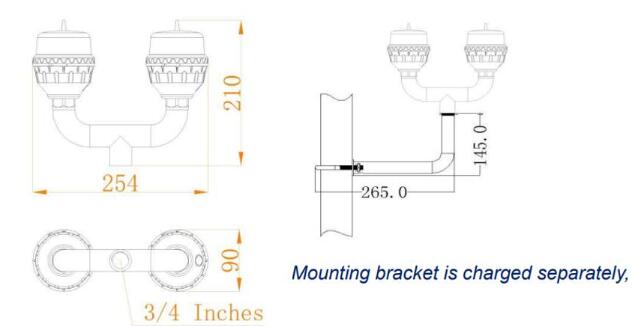

Dimension & Installation:

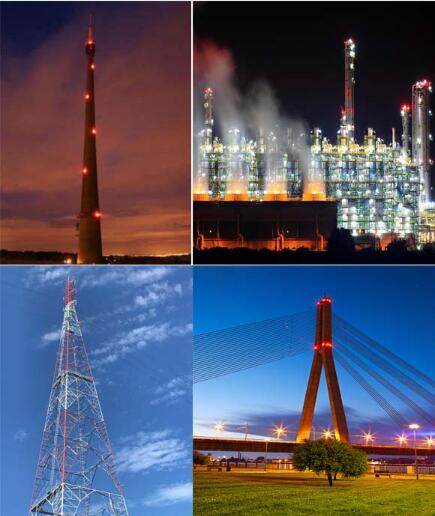

Applications:
Double Obstruction Light L 810 Light AO-LI-D1 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 45m. Our obstruction lights aviation, air craft warning light has a super long time life.
