L 810 Obstruction Light Low Intensity Aviation Light AO-LI-B1

L 810 obstruction light low intensity aviation light AO-LI-B1 is an essential lighting system design

L 810 Obstruction Light Low Intensity Aviation Light AO-LI-B1 is an essential lighting system designed to enhance aviation safety by marking tall structures such as towers, chimneys, cranes, and buildings to prevent potential collisions with aircraft. These lights are highly visible, day and night, and are equipped with advanced features to ensure reliable performance in various environmental conditions. The L 810 obstruction light provides high visibility, reliable performance, and compliance with international aviation standards, making it an ideal choice for a wide range of applications.

     Overview:

FAA L 810 obstruction light low intensity aviation light AO-LI-B1, it has different colors and different light characteristics, such as Fixed light, flashing light. According to ICAO regulations, this low intensity obstruction light is designed for marking top of obstacle which height is more than 45m.  and this l810 obstruction light needs to keep working  in night time. We adopt high intensity CREE LEDs as light source, stable quality and long life time.



     Compliance:

1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018

2. FAA L-810.



     Features:

1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Unique design and UV protected polycarbonate for the obstruction light protect cover.

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. No screw fix type - just twist, the cover will be fixed tightly.

7. Built-in photocell for daytime and night operation.

8. Surge and lightning protection.

9. 3/4 inch Pipe thread installation.



     Specification:

Product Name

FAA L 810 Obstruction Light Low Intensity Aviation Light AO-LI-B1

Mode NO.:

AO-LI-B1

Color:

Red/yellow/blue/white etc

Light source:

CREE LED

LED life time

100000hrs

Light Intensity(cd):

>32.5cd (other 10cd, 100cd as optional)

Horizontal Output(degrees):

360 degree

Vertical Divergence(degrees):

>10 degree

Flashing Characteristics:
Fixed light/20/30/60fpm adjustable by DIP switch

Operation Mode:

Night working, daytime off

Input:

100-240VAC 50-60Hz, 12-48VDC(Details contact us)

Power Consumption(W):

Average Power consumption<3W

Circuit Protection:

Integrated

Obstruction Light Material:

PC cover, lens and Powder coated die-casting aluminum base.

Weight(kg):

0.3kg

IP Grade:

IP66

Work environment:

-50℃~+60℃, Humidity 0%-100%



Optional functions(Separate charges):

1. infra-Red (IR) light for NVG

2. Mounting bracket

3. Other functions etc.

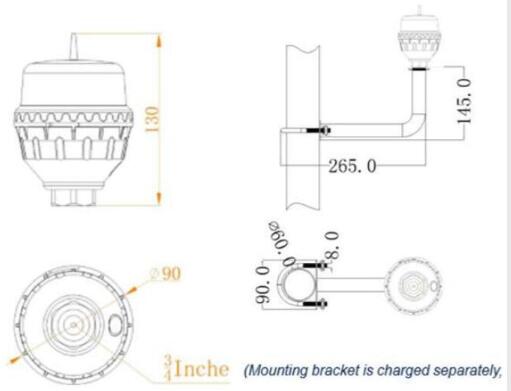

     Dimension & Installation:

L 810 obstruction light

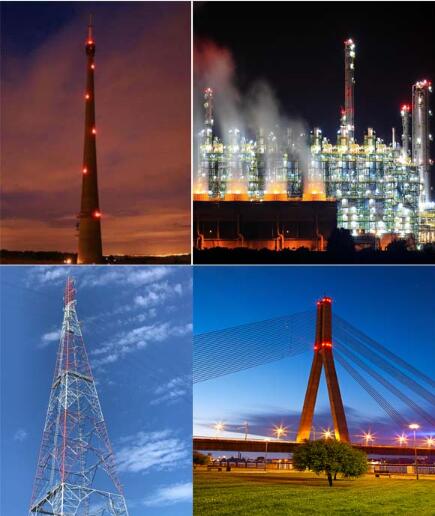

     Applications:

L 810 Obstruction Light Low Intensity Aviation Light AO-LI-B1 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine,  oil & Gas offshore platform etc when the obstacle height is more than 45m. It also can use as airport obstruction lights.

L 810 obstruction light
