In the world of aviation, safety is always the top priority. A crucial element of ensuring air traffic safety is the use of obstruction warning lights. These lights serve as a visual signal, alerting pilots to the presence of tall structures like skyscrapers, towers, cranes, and other obstacles that could pose a danger to aircraft. Particularly in areas with high air traffic or dense urban environments, obstruction warning lights are critical in preventing accidents and ensuring that pilots can navigate safely. This article delves into the importance of obstruction warning lights, their types, functions, and regulatory requirements.
What Are Obstruction Warning Lights?
Obstruction warning lights are specialized lighting systems installed on tall structures to make them visible to aircraft. They are used to mark obstacles that exceed certain heights and could present a hazard to low-flying planes, helicopters, and drones. These lights are especially vital in low-visibility conditions, such as nighttime, fog, or storms, when aircraft may not be able to see these structures until it is too late.
The primary goal of obstruction warning lights is to provide a clear visual marker to pilots, indicating the presence of potential obstacles in their flight path. By doing so, they help reduce the risk of mid-air collisions, improve situational awareness, and promote safe navigation in busy airspace.
Types of Obstruction Warning Lights
Low-Intensity Obstruction Warning Lights
Low-intensity obstruction warning lights are typically used for shorter structures, usually those less than 150 feet (45 meters) in height. These lights are designed to emit a red signal that is visible to aircraft but not overly bright to avoid unnecessary light pollution in residential or urban areas.
These lights are commonly installed on smaller buildings, utility poles, and communication towers, where the risk of collision is lower but still present. The steady or flashing red light is effective for marking these structures during night flights or in low-visibility conditions, alerting pilots to their presence without causing too much glare.
Medium-Intensity Obstruction Warning Lights
For taller structures, typically between 150 and 450 feet (45 to 150 meters), medium-intensity obstruction warning lights are used. These lights are brighter than low-intensity lights and often feature both red and white light options. The white light is used during the daytime to ensure visibility in daylight conditions, while the red light is used at night to provide clear visibility in the dark.
These lights are generally installed on communication towers, residential high-rises, and wind turbines. Multiple lamps are often positioned at various points on the structure, including the top, mid-level, and lower levels, to ensure that the entire height of the building is visible to aircraft from all directions.

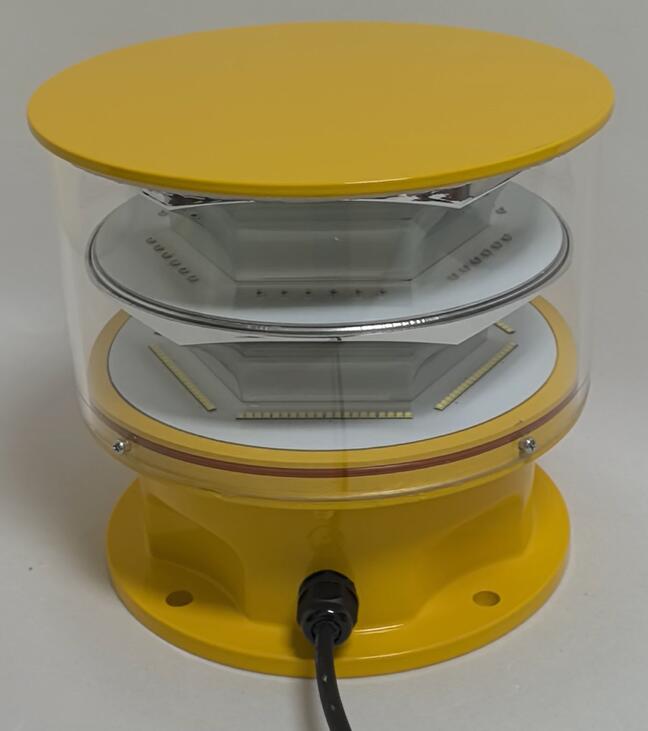

| obstruction warning lights | DFGT6 |
High-Intensity Obstruction Warning Lights
High-intensity obstruction warning lights are reserved for the tallest structures, such as skyscrapers, large communication towers, and industrial chimneys, typically exceeding 450 feet (150 meters). These lights are extremely bright and are visible from miles away, making them essential for marking massive structures in areas with high air traffic.
These lights are usually white and flash in rapid intervals during both the day and night. The flashing pattern serves to draw attention to the structure, making it easy for pilots to spot even from a distance. High-intensity obstruction warning lights are particularly common in urban areas with busy flight corridors or near major airports, where tall structures are frequent and the risk of collision is higher.
Infrared Obstruction Warning Lights
Infrared (IR) obstruction warning lights are a specialized type of obstruction light designed for use in military or sensitive applications. These lights are not visible to the human eye but can be detected by aircraft equipped with infrared sensors. Infrared warning lights are commonly used on military installations, sensitive research facilities, or areas where minimizing visibility to the public or unauthorized individuals is necessary.
Despite being invisible to the naked eye, infrared lights are just as effective in marking obstacles for aircraft that rely on infrared detection systems. These lights help ensure that structures are clearly marked for authorized aircraft without alerting others to their presence, adding an extra layer of security.
The Functionality of Obstruction Warning Lights
The primary function of obstruction warning lights is to mark tall structures and make them visible to aircraft flying at lower altitudes. The lights help pilots avoid collisions with obstacles, especially when they are flying in congested areas or under poor visibility conditions.
Prevention of Mid-Air Collisions
The main purpose of obstruction warning lights is to help prevent mid-air collisions. By making tall structures more visible, these lights ensure that pilots can easily spot potential hazards from a distance and adjust their flight paths accordingly. This is particularly important in urban environments, where buildings and other structures may be scattered across large areas with heavy air traffic.
Improved Navigation in Low-Visibility Conditions
During nighttime flights, fog, or storms, visibility can be severely compromised, and tall structures can become hard to spot. Obstruction warning lights provide a critical visual reference, allowing pilots to navigate safely around these obstacles, even when other visual cues may be obscured by weather conditions.
Marking Hazardous Structures
Certain structures, such as radio towers, cranes, and wind turbines, pose specific hazards to low-flying aircraft. Obstruction warning lights are used to mark these types of structures, ensuring that pilots are aware of their presence and can safely avoid them during their flight.
Regulatory Compliance
In addition to enhancing safety, the installation of obstruction warning lights is often required by national and international regulations. These lights ensure compliance with aviation safety standards, preventing legal issues and ensuring that buildings meet the necessary criteria for aviation safety.
Regulatory Standards for Obstruction Warning Lights
The installation of obstruction warning lights is governed by regulations set by aviation authorities, such as the Federal Aviation Administration (FAA) and the International Civil Aviation Organization (ICAO). These regulations outline the necessary requirements for marking structures with appropriate lighting systems, ensuring that all tall structures are clearly visible to aircraft.
Federal Aviation Administration (FAA)
In the United States, the FAA has established clear guidelines for the installation of obstruction warning lights. According to FAA Advisory Circular 70/7460-1L, any structure taller than 200 feet (61 meters) must be equipped with proper obstruction lighting. The FAA specifies the types of lights, their intensity, and the required flashing patterns to ensure visibility and safety.
The FAA also outlines the inspection and maintenance protocols for obstruction warning lights, ensuring that they remain operational and effective over time. Compliance with FAA regulations is crucial for building owners and developers, as failure to install the proper warning lights could result in penalties and legal liability in the event of an accident.
International Civil Aviation Organization (ICAO)
Globally, the ICAO provides guidelines for the marking of obstacles, including the use of obstruction warning lights. ICAO's Annex 14, which deals with aerodromes, specifies that any structure taller than 45 meters (150 feet) must be marked with appropriate lighting. ICAO also outlines the standards for light intensity, color, and flashing patterns, ensuring that obstruction lights are consistent worldwide and easily identifiable by pilots.
Benefits of Obstruction Warning Lights
Enhanced Safety for Pilots
The primary benefit of obstruction warning lights is the enhanced safety they provide for pilots. By making tall structures visible, these lights help prevent accidents and mid-air collisions, especially in busy airspaces or areas with low visibility.
Clear Navigation in Challenging Conditions
Obstruction warning lights make it easier for pilots to navigate safely, especially in challenging weather conditions or when flying at night. These lights are a crucial part of the overall aviation safety system, providing a reliable signal to pilots.
Compliance with Aviation Regulations
Installing obstruction warning lights helps building owners comply with local and international aviation safety regulations. By ensuring that their structures are properly marked, they avoid potential legal issues and contribute to the overall safety of the airspace.
Obstruction warning lights are a critical component of airspace safety. They help ensure that tall structures are visible to pilots, preventing collisions and improving navigation in low-visibility conditions. Whether low-intensity, medium-intensity, high-intensity, or infrared, these lights play a vital role in maintaining safe air traffic, particularly in urban environments with dense air traffic. By adhering to regulatory standards, obstruction warning lights help protect both pilots and passengers, contributing to the broader goal of safe and efficient air travel.
