Airport Rotating Beacon Airfield Beacon Light AO-HP-R1

The Airport Rotating Beacon is a prominent feature used at airports worldwide to provide visual guidance to pilots. It consists of a powerful rotating light mounted on a high structure, typically a tower or building. The primary function of the rotating beacon is to mark the location of the airport and assist pilots in identifying its position during both day and night operations.

The beacon emits a bright, rotating light that can be seen from a considerable distance. It is usually equipped with multiple lights, often colored white and/or green, which create a distinctive visual pattern. This helps pilots differentiate the airport beacon from other surrounding lights and landmarks.

The Airport Rotating Beacon operates continuously, usually from dusk till dawn, providing a constant visual reference for pilots. It allows them to easily identify the airport's location, align with the runway, and maintain situational awareness during approach and departure.

This vital aviation aid enhances safety by providing a clear and unmistakable visual reference point for pilots, especially in low visibility conditions. The Airport Rotating Beacon is an integral part of airport infrastructure, contributing to the smooth and efficient flow of air traffic and ensuring the safe operation of aircraft.

     Overview:

Airport Rotating Beacon Airfield Beacon Light AO-HP-R1 is for night operation as identification and location markers for heliports. Besides, rotating beacon light also can be used as airport rotating beacon, this rotary beacons will be a marker for airport.

     Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA  AC 150/5390-2B Heliport Design Guide

     Features:

1. Adopt super bright brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Maintenance-free.

4. All moving parts are permanently lubricated.

5. Impedance-protected motor eliminates burnouts.

6. 12RPM rotation, 36 flashes/minute.

7. Weatherproof stainless steel cabinet, powder-coated yellow.

8. Less light pollution, defined light beam has less light “wash”.

9. Three LED lamps: white, aviation green, yellow.

     Specification:

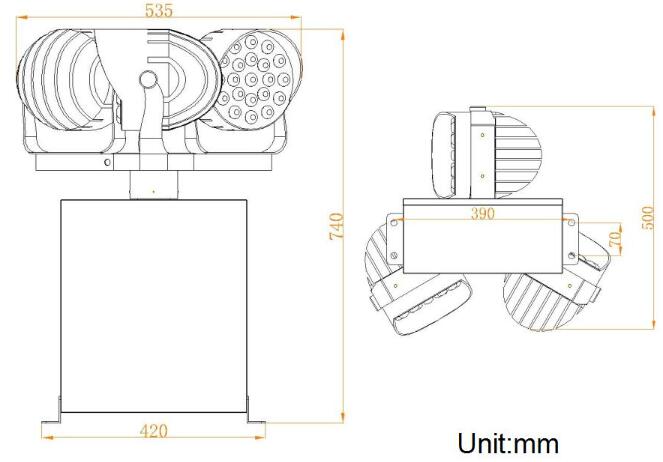

     Dimension & Installation:

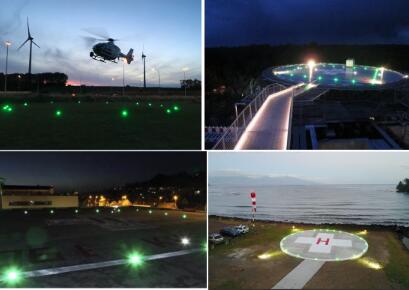

     Applications:

Airport Rotating Beacon Airfield Beacon Light AO-HP-R1 is used for night operation as identification and location markers for heliports. Perfect for hospitals located in densely populated neighborhoods where full power creates problems with light pollution. Other airport that need less light pollution, they asked for airport rotating beacon.
