Helicopter Pad Lights Heliport Perimeter Light AO-HP-E1

Helicopter Pad Lights, also known as Heliport Perimeter Lights, are essential components of heliport lighting systems. These lights are specifically designed to outline the perimeter of the helicopter landing area, providing a clear visual reference for pilots during approach, landing, and takeoff operations.

Helicopter Pad Lights are typically installed at regular intervals around the heliport, creating a well-defined and easily identifiable landing zone. They are usually colored green or blue to differentiate them from other surrounding lights. These lights may be equipped with steady burn or flashing capabilities, depending on regulatory requirements.

The primary function of Helicopter Pad Lights is to enhance safety by clearly defining the boundaries of the helipad, enabling pilots to align with the designated landing area and identify any obstacles or hazards. They play a crucial role in improving situational awareness and helping pilots maintain a stable approach and departure.

Helicopter Pad Lights are designed to meet regulatory standards and are typically weather-resistant and durable. Their reliable performance ensures the safe and efficient operation of helicopter landing sites, contributing to the overall safety and effectiveness of helicopter transportation.

     Overview:

Helicopter Pad Lights Heliport Perimeter Light AO-HP-E1 , it has many kinds of applications, such as heliport perimeter light, Heliport TLOF, FATO Light, heliport approach landing light etc. It could be used as perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway light, runway light, flight path Lighting, etc.  Our  helideck lighting heliport Elevated light height not exceed 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.

     Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA  AC 150/5390-2B Heliport Design Guide

     Features:

1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. Fragile coupling reduce the secondary damage to helicopters effectively.

     Specification:

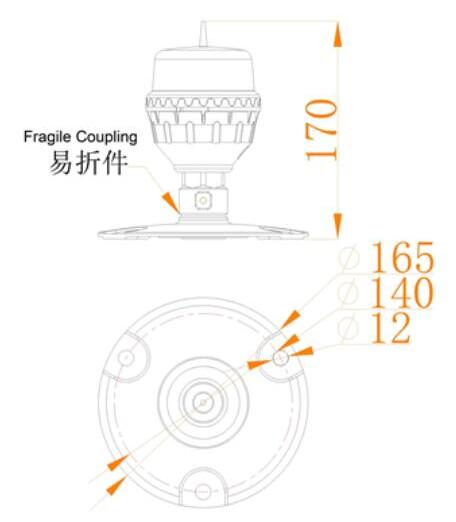

     Dimension & Installation:

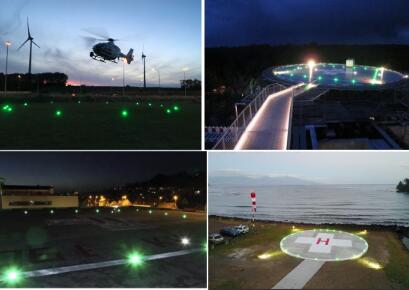

     Applications:

Helicopter Pad Lights Heliport Perimeter Light AO-HP-E1 has many applications for heliport lighting, sucha as Helipad FATO light, heliport TLOF areas  Heliport FATO areas, Helipad Runway, Helipad taxiway, helideck perimeter light etc.
