Self Contained Marine Lanterns Buoy Solar Marine Lantern AO-ML-P1

Contained Marine Lanterns Buoy Solar Marine Lantern AO-ML-P1

Self-contained marine lanterns are compact and independent navigational aids used in maritime environments. These lanterns incorporate all the necessary components, such as a light source, power source, and control system, within a single unit. They are designed to be easy to install and operate, making them ideal for temporary or remote locations.

Self-contained marine lanterns are typically powered by batteries, which can be rechargeable or replaceable, depending on the model. Some lanterns may also have solar panels to supplement or recharge the batteries, providing extended operation without the need for frequent battery replacements.

These lanterns are often equipped with LED lights, which offer high visibility and energy efficiency. They emit a focused and intense light beam that can be seen from a distance, enhancing safety and aiding navigation. Many self-contained marine lanterns also feature advanced control systems, allowing for programmable flash patterns and remote monitoring capabilities.

Due to their compact and self-contained nature, these lanterns are versatile and can be used in various marine applications, including buoys, piers, breakwaters, and offshore structures. They are designed to withstand harsh marine conditions, such as strong winds, heavy rain, and saltwater exposure.

Self-contained marine lanterns play a vital role in marine safety by marking navigational hazards, channels, and other critical reference points. They help vessels navigate safely, avoid potential dangers, and maintain the proper course. With their reliability and ease of use, self-contained marine lanterns contribute to the overall efficiency and effectiveness of maritime operations.

     Overview:

Self Contained Marine Lanterns Buoy Solar Marine Lantern AO-ML-P1 3-4nm visable range, this Marine Lantern is completely self-contained lantern, adopting integrated high efficient solar panels design, lithium ion battery as power supply, our LED solar marine Lantern can be used on buoy, any other off shore site for marine or river safe navigation and warning.  Our buoy lantern light long life time.



     Compliance:

1. IALA Recommendations E-200-1.



     Features:

1. Based on LED technology, and its color complies to IALA Recommendations E-200-1.LED technology reduces maintenance time & costs.

2. Solar powered self-contained lantern.

3. Unique design and UV protected polycarbonate for the marine lantern light protect cover.

4. PC lens cover, UV resistance, shockproof and corrosion proof.

5. 366 kinds of light Characteristics.

6. Low power consumption.

7. Built-in photocell for daytime and night operation.



     Specification:

Product Name

Self Contained Marine Lanterns Buoy Solar Marine Lantern AO-ML-P1

Mode NO.:

AO-ML-P1

Color:

Red/Green/yellow/white/blue etc

Light source:

LEDs

Light Intensity(cd):

>100cd

Horizontal Output(degrees):

360 degree

Visable Range:

3-4NM (@ Tc=0.74)

Flashing Characteristics:
366 types flashing Characteristics

Operation Mode:

Night working, daytime off

Power System:

Solar power system (Mono-crystalline Silicon solar panel + lithium battery)

Power Consumption(W):

Average Power consumption<2W

Autonomy (hours):

Fixed Light: 60hrs, Flashing: 150hrs

Marine lantern Material:

PC cover, aluminum base

Weight(kg):

2.5kg

IP Grade:

IP68

Work environment:

-50℃~+60℃, Humidity 0%-100%



Optional:

1. External charging port

2. GPS sync

3. IR remote control

4. RS 232 port

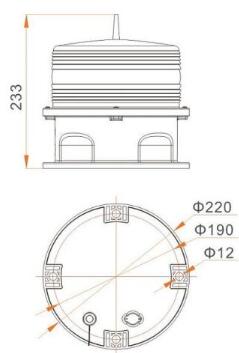

     Dimension & Installation:

Self Contained Marine Lanterns

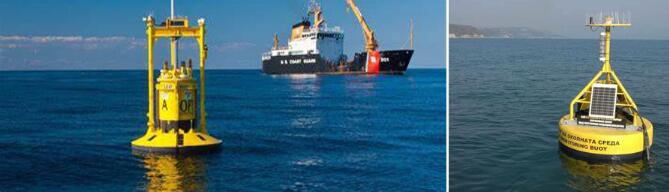

     Applications:

Self Contained Marine Lanterns Buoy Solar Marine Lantern AO-ML-P1 can be used in buoy lantern, and any other off shore site for marine or river safe navigation and warning. This solar marine lantern long life time.



Self Contained Marine Lanterns
