Portable runway lights are essential lighting systems that can be quickly deployed and easily transp
Portable runway lights are essential lighting systems that can be quickly deployed and easily transported to provide temporary or backup lighting for airport runways, helipads, or temporary landing zones. These lights are designed to enhance visibility and safety for aircraft operations during emergencies, maintenance work, or in remote locations where traditional lighting infrastructure may be unavailable.
Portable runway lights are typically battery-powered and often utilize energy-efficient LED technology for reliable and efficient illumination. They play a vital role in ensuring the continuity of airfield operations in various scenarios, such as military operations, disaster relief efforts, and construction projects. The portability and quick setup of these lights make them indispensable for providing temporary lighting solutions in situations where permanent lighting installations are not feasible.
These lights are often designed to meet international standards for airfield lighting, ensuring that they can be used in a wide range of aviation applications. Additionally, their durability and resistance to harsh weather conditions make them suitable for use in challenging environments. Overall, portable runway lights are crucial components of airfield lighting systems, providing flexibility and reliability in temporary or remote settings where traditional lighting may not be sufficient.
Overview:

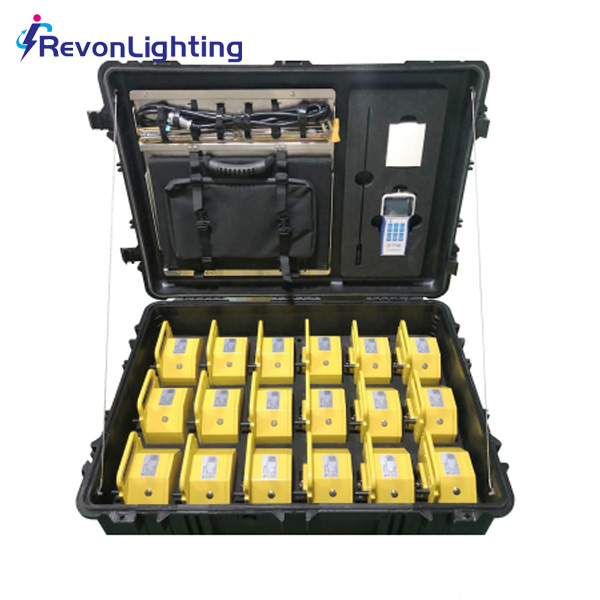

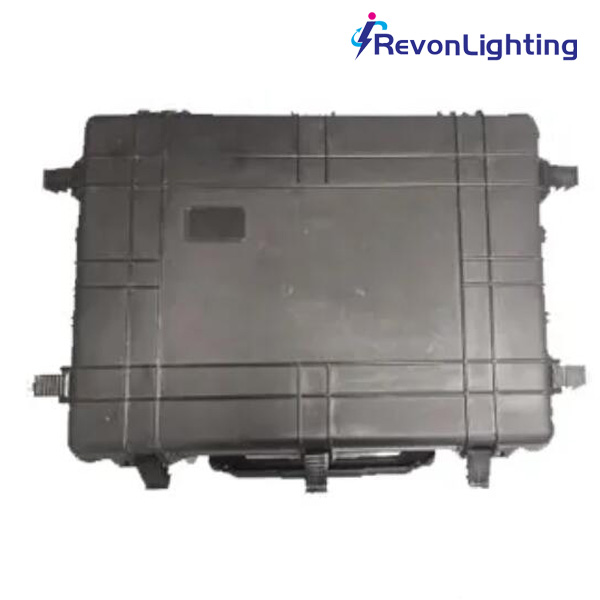

Portable runway lights for portable airfield lighting AO-PH-G1 is for emergency situations, specially used on permanent airport or heliport. Our portable airfield lights has a carrying case, easy to take, very convenient.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Adopt super bright brand LED, high intensity with a lower energy consumption.
2. Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
3. Hard anodizing Aluminum housing ensure good UV resistance, shockproof and corrosion proof, anti-corrosion, salt-spray proof.
4. Charging port besides.
5. Battery status LCD screen on top.
6. Light with handle for easy move, with convenient carrying case design.
7. ON/OFF button every light.
Specification:
|
Product Name |
Portable runway lights for portable airfield lighting AO-PH-G1 |
|
Mode NO.: |
AO-PH-G1 |
|
Color: |
Red, Green, Yellow, White, Blue, IR |
|
Light source:
|
LEDs |
|
Qty per Casing: |
8pcs/12pcs/18pcs |
|
Battery typ: |
Lithium ion battery |
|
Battery capacity: |
7.4V/20AH |
|
Flashing Characteristics:
|
steady burning, fixed light (Flashing mode is optional)
|
|
Operation Mode: |
24 hours after power on |
|
Autonomy (hours): |
60 hours |
|
Lamb Body Material: |
Hard anodizing Aluminum Alloy |
|
Light Weight: |
2.4kg |
|
Product Life time: |
>5 years |
|
IP Grade: |
IP67 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Suitecase materials |
PP Alloy resin |
|
Suitecase Size(mm) |
80*60*36mm (12/18pcs lights), 60*50*24mm(8pcs lights) |
|
Suitecase Battery charging input |
110-240V AC |
|
Anchoring Stakes |
Stainless Steel 31mm DIA 0.06kg |
|
Foldable Solar Panel （optional） |
Unfolded sizes (W*L) 1440x410mm,3.1kg 18V 120W |
|
Wireless Remote Control （optional） |
433MHZ Wireless Remote Control (up to 3km) |
|
Optional: |
1. Wireless remote control (433MHZ, 3KM effective distance) 2. NVG - compatible infrared (IR) LED 3. Folding solar panel for outdoor charging. |

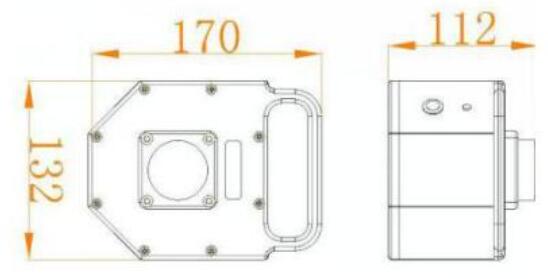

Dimension for Light:
Applications:

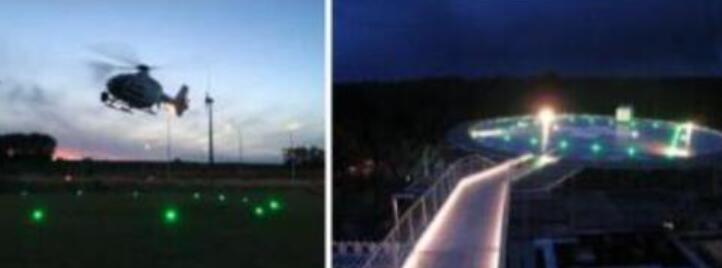

Portable runway lights for portable airfield lighting AO-PH-G1 is widely used for Touchdown and Lift- off area ( TLOF) , Final Approach andTake- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Helipad taxiway, Emergency operations.
