Tower obstruction lighting solar powered aviation obstruction light Type C AO-SMI-C1
Tower obstruction lighting is an essential component of aviation safety, and solar-powered aviation obstruction lights are an eco-friendly and efficient solution. These lights are specifically designed to mark tall structures such as communication towers, wind turbines, and other potential hazards to aircraft. Powered by solar energy, these lights operate independently and do not require external power sources, reducing maintenance and operating costs. Solar-powered aviation obstruction lights emit a bright and highly visible light, ensuring their visibility to pilots during day and night operations. These lights are equipped with light sensors that automatically activate the lights at dusk and deactivate them at dawn, optimizing energy usage. With their durable construction, these lights can withstand harsh weather conditions and have a long lifespan. By clearly marking the presence of obstacles, solar-powered aviation obstruction lights help pilots navigate safely, minimizing the risk of accidents and ensuring the overall safety of aircraft operations.
Overview:
Tower obstruction lighting solar powered aviation obstruction light Type C AO-SMI-C1 medium intensity solar obstruction light type C, it is fixed red light in night. According to ICAO, FAA regulations, this solar powered obstruction lights is designed for marking top of obstacle which height is between 45 to 105 meters.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-864.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Solar powered self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
3. Unique design and UV protected polycarbonate for the solar obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Big mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
7. Built-in photocell for daytime and night operation.
8. Long life time lithium battery.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
Tower obstruction lighting solar powered aviation obstruction light Type C AO-SMI-C1 |
|
Mode NO.: |
AO-SMI-C1 |
|
Color: |
red |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
fixed light
|
|
Operation Mode: |
night work |
|
Battery: |
20-32AH lithium battery |
|
Solar panel: |
Mono crystalline silicon solar panel |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
13kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

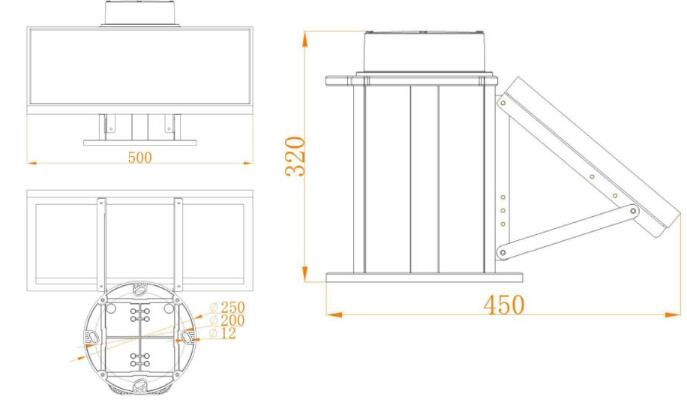

Dimension & Installation:
Applications:

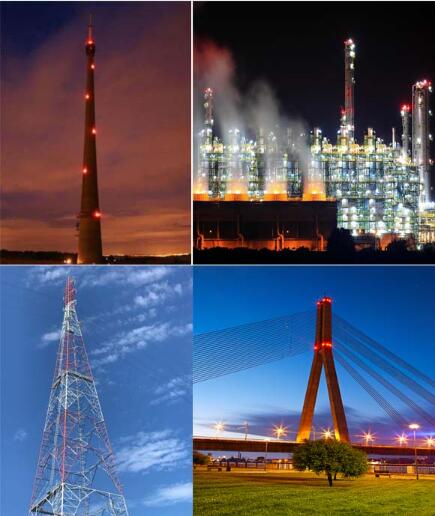

Tower obstruction lighting solar powered aviation obstruction light Type C AO-SMI-C1 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is 45m-105m, and it needs medium intensity aviation obstruction light in the top, and low intensity obstacle lights installed on the lower place.
