L 810 solar obstruction light low intensity aviation light AO-SLI-S4
The L 810 solar obstruction light, also known as a low-intensity aviation light, is a vital component of aviation safety. This light is specifically designed to mark obstacles such as tall structures, wind turbines, and communication towers to ensure the safe operation of aircraft. Powered by solar energy, the L810 solar obstruction light operates independently without the need for external power sources, making it cost-effective and environmentally friendly.
With its low-intensity, highly visible light, the L 810 solar obstruction light is easily detectable by pilots during both day and night operations. It is designed to meet international aviation standards and regulations. Equipped with light sensors, it automatically activates the light at dusk and deactivates it at dawn, optimizing energy usage.
Built with durability in mind, this light can withstand harsh weather conditions and has a long lifespan. By clearly marking the presence of obstacles, the L810 solar obstruction light helps pilots navigate safely, reducing the risk of accidents and ensuring overall aviation safety.
Overview:
L 810 solar obstruction light low intensity aviation light AO-SLI-S4, it flash red color night time. According to ICAO, FAA regulations, this solar obstruction light is designed for marking top of obstacle which height is not more than 45m, and this l810 solar obstruction light obstruction of light needs to keep working in night time. We adopt high intensity LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Adopt super bright brand LED, high intensity with a lower energy consumption.
2. Solar powered self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
3. Unique design and UV protected polycarbonate for the solar obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. With bird needle to prevent bird drop..
7. Built-in photocell for daytime and night operation.
8. Long life time lithium battery.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
L 810 solar obstruction light low intensity aviation light AO-SLI-S4 |
|
Mode NO.: |
AO-SLI-S4 |
|
Color: |
Red |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>32.5cd (other 10cd, 100cd as optional) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
20-60FPM or Fixed Lighting.
|
|
Operation Mode: |
Night working, daytime off |
|
Battery: |
6AH lithium battery |
|
Solar panel: |
Mono crystalline silicon solar panel |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
1kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

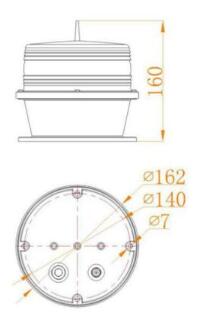

Dimension & Installation:
Applications:

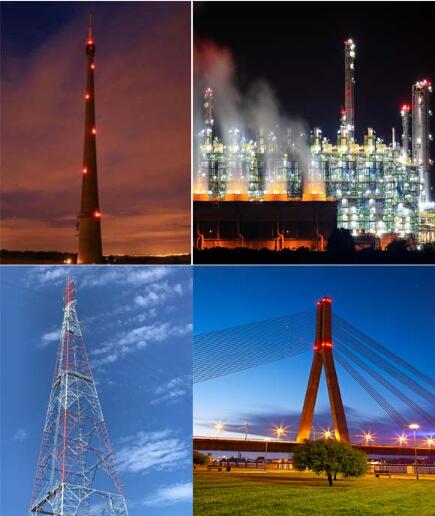

L 810 solar obstruction light low intensity aviation light AO-SLI-S4 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is not more than 45m.
