Solar Powered Marine Lantern AO-ML-4S
Marine lanterns are navigational aids used in maritime environments to provide visual guidance and ensure safe navigation. These lanterns, also known as marine beacons or lights, are typically mounted on structures like lighthouses, buoys, piers, or offshore platforms.
Marine lanterns use various light sources, such as incandescent bulbs, halogen lamps, or LED lights, to emit a bright and visible light beam. They are designed to meet specific color, intensity, and flash characteristics to convey important information to mariners, such as marking channels, hazards, or indicating safe passages.
These lanterns are constructed to withstand harsh marine conditions, including strong winds, heavy rain, saltwater exposure, and extreme temperatures. They often feature robust and durable enclosures made of materials like stainless steel or marine-grade plastics.
Marine lanterns can be powered by electricity from the grid, batteries, or solar energy. Solar-powered lanterns are becoming increasingly popular due to their eco-friendly and cost-effective operation, as they harness the sun's energy to charge internal batteries.
With their essential role in maritime safety, marine lanterns contribute to preventing collisions, guiding ships, and ensuring efficient and secure marine operations. They are an integral part of the navigational infrastructure, helping vessels navigate safely through different waterways and maintain the correct course.
Overview:
Solar Powered Marine Lantern AO-ML-4S solar marine Lantern 5-7nm visable range, this marine lantern is completely self-contained lantern, adopting integrated high efficient solar panels design, lithium ion battery as power supply, our LED solar marine Lantern can be used on buoy, any other off shore site for marine or river safe navigation and warning. Our marine solar lantern long life time.
Compliance:
1. IALA Recommendations E-200-1.
Features:
1. Based on LED technology, and its color complies to IALA Recommendations E-200-1.LED technology reduces maintenance time & costs.
2. 4 sides solar powered self-contained lantern.
3. Unique design and UV protected polycarbonate for the marine lantern light protect cover.
4. PC lens cover, UV resistance, shockproof and corrosion proof.
5. 366 kinds of light Characteristics.
6. Low power consumption.
7. Built-in photocell for daytime and night operation.
Specification:
|
Product Name |
Solar Powered Marine Lantern AO-ML-4S |
|
Mode NO.: |
AO-ML-4S |
|
Color: |
Red/Green/yellow/white/blue etc |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>180cd |
|
Horizontal Output(degrees): |
360 degree |
|
Visable Range: |
5-7NM (@ Tc=0.74) |
|
Flashing Characteristics:
|
366 types flashing Characteristics(adjust by IR remote controller)
|
|
Operation Mode: |
Night working, daytime off |
|
Power System: |
Solar power system (Mono-crystalline Silicon solar panel + lithium battery) |
|
Power Consumption(W): |
Average Power consumption<4W |
|
Autonomy (hours): |
Fixed Light: 60hrs, Flashing: 150hrs |
|
Marine lantern Material: |
PC cover lens, aluminum casing |
|
Weight(kg): |
6kg |
|
IP Grade: |
IP68 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional: |
1. External charging port 2. GPS sync 3. IR remote control 4. RS 232 port 5. GSM monitoring |

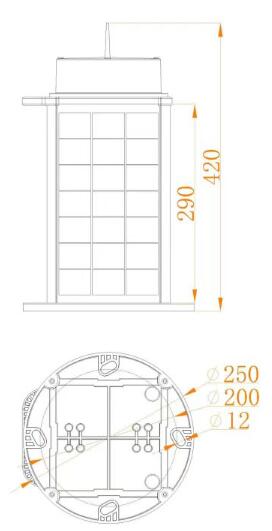

Dimension & Installation:
Applications:

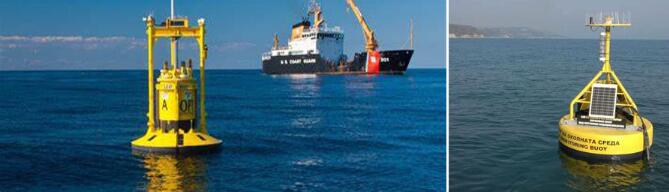

AO-ML-4S solar marine lantern light can be used in buoy lantern, and any other off shore site for marine or river safe navigation and warning. This solar marine lantern is self contained lantern, marine solar lantern long life time.
