Solar marine Lantern AO-ML-5S

Solar marine Lantern AO-ML-5S

A solar marine lantern is a specialized navigational aid used in marine environments to provide guidance and promote safe navigation. These lanterns utilize solar power as their primary energy source, harnessing sunlight through solar panels to charge internal batteries. This renewable energy solution eliminates the need for traditional power sources and reduces environmental impact.

Solar marine lanterns feature LED lights, which emit a bright and highly visible light beam. LED technology offers several advantages, including energy efficiency and long lifespan. These lanterns are designed to meet industry standards for color, intensity, and flash characteristics to convey important information to mariners. They are often used to mark channels, hazards, and safe passages.

The rugged construction of solar marine lanterns allows them to withstand harsh marine conditions, including high winds, heavy rain, saltwater exposure, and extreme temperatures. They are typically housed in durable enclosures made of materials such as stainless steel or marine-grade plastics. Some lanterns also incorporate advanced control systems, offering programmable flash patterns and remote monitoring capabilities.

Solar marine lanterns play a vital role in maritime safety by enhancing visibility and aiding navigation. They are commonly deployed on structures such as lighthouses, buoys, piers, and offshore platforms. These lanterns ensure that vessels can navigate safely and avoid potential dangers, contributing to the overall efficiency and effectiveness of marine operations. With their reliance on renewable energy, solar marine lanterns offer a sustainable solution for navigational lighting in the marine industry.

     Overview:

AO-ML-5S solar marine Lantern 8-11nm visable range, this marine lantern is completely self-contained lantern, adopting integrated high efficient solar panels design, lithium ion battery as power supply, our LED solar marine Lantern can be used on buoy, any other off shore site for marine or river safe navigation and warning.  Oursolar led marine lantern long life time.



     Compliance:

1. IALA Recommendations E-200-1.



     Features:

1. Based on LED technology, and its color complies to IALA Recommendations E-200-1.LED technology reduces maintenance time & costs.

2. 4 sides solar powered self-contained lantern.

3. Unique design and UV protected polycarbonate for the marine lantern light protect cover.

4. PC lens cover, UV resistance, shockproof and corrosion proof.

5. 366 kinds of light Characteristics.

6. Low power consumption.

7. Built-in photocell for daytime and night operation.



     Specification:

Product Name

Solar marine Lantern AO-ML-5S

Mode NO.:

AO-ML-5S

Color:

Red/Green/yellow/white/blue etc

Light source:

LEDs

Light Intensity(cd):

>1800cd

Horizontal Output(degrees):

360 degree

Visable Range:

8-11NM (@ Tc=0.74)

Flashing Characteristics:
366 types flashing Characteristics(adjust by IR remote controller)

Operation Mode:

Night working, daytime off

Power System:

Solar power system (Mono-crystalline Silicon solar panel + lithium battery)

Power Consumption(W):

Average Power consumption<4W

Autonomy (hours):

Fixed Light: 50hrs, Flashing: 150hrs

Marine lantern Material:

PC cover lens, aluminum casing

Weight(kg):

9kg

IP Grade:

IP68

Work environment:

-50℃~+60℃, Humidity 0%-100%





Optional:

1. External charging port

2. GPS sync

3. IR remote control

4. RS 232 port

5. GSM monitoring

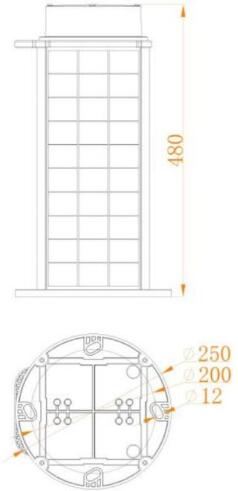

     Dimension & Installation:

Solar marine Lantern



     Applications:

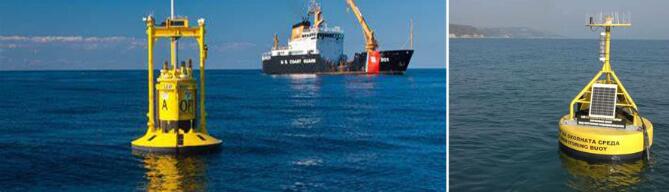

AO-ML-5S solar marine lantern light can be used in buoy lantern, and any other off shore site for marine or river safe navigation and warning. This solar marine lantern is self contained lantern, solar led marine lantern long life time.



Solar marine Lantern AO-ML-5S
